Product Appearance
QSY3
QSL3
QS68E/68E PRO
QS68E PLUS
- 1.1 Color
- QSY3: Black
- QSL3: Black
- QS68E/68E Pro: Black & White
- QS68E Plus: Grey
- 1.2 Material
- QSY3: Aluminum alloy, mini size &cute
- QSL3: Aluminum alloy, Delicate and meticulous

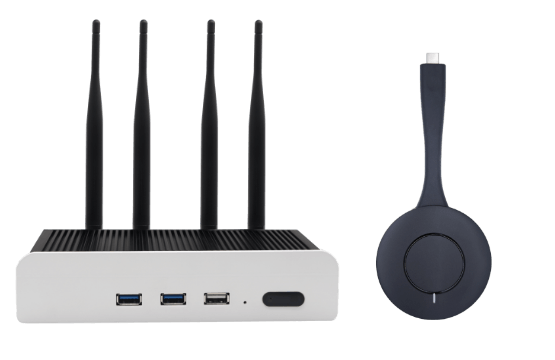

- QS68E/68EPro: Aluminum alloy, 4 antennas & impressive
- QS68E Plus: Plastic casing, Simple but impressive
- 1.3 Dimension
- QSY3: 104*105*25mm
- QSL3: 120*120*21.5mm
- QS68E/QS68E Pro: 190*113*43mm
- QS68E Plus: 140*225*40mm
Summary
QS68E has similar appearance like QS68E Pro, while both of them are very different from QSY3 and QSL3. QS68E Pro & QS68E Plus have almost the same interfaces and Y3 &L3 have less interfaces compared to them, which means QS68E Pro & QS68E are more
Features
The user can make the most of the existing equipment in the conference room and no need any heavy work to install a QuickShare Wireless Screen Presentation Box, which allows the user to cast on monitors including TV and projector via PC, smart phone or pad
QuickShare Y3 Features
- 5G+5G dual-band wireless connection; 4K HD Display; 2-channel wireless screen casting
- Casting via BYOD devices, including Android, iOS, Mac, Windows, Linux devices; compatible with AirPlay, Miracast, WiDi, Googlecast, QuickShare Cast
- Scan code to cast and use casting code to cast; AP hotspot coverage
- SDK of Wireless casting could be provided
- News broadcast; managed by Unified management platform
QuickShare L3 Features
- 4K HD presentation; up to 4 channels present simultaneous, 1080p HD decoding solution
- Single Screen 4K Pixel to Pixel, Dual Screen 1080P to 1080P
- Casting via BYOD devices, multiple smart endpoints can cast simultaneously; compatible with AirPlay, Miracast, WiDi, Googlecast, QuickShare Cast, no need to install any APP
- Multi-screens linkage; the main screen can interact with sub screens as long as multiple QSL3 are in the same LAN, no HDMI or any other video connecting cables. (Note*: The multi-machine linkage function requires additional Active Software Package)
- Power ON/OFF can be linked with third-party devices (such as projector, TV, IFP, touch screens, etc.)
- Timely restarting, you can set the device restarting timely
- Built-in information pushing system; customized wallpaper rotating
- Customized SDK integration service; Unified Management Platform to centralize control and O&M devices in the same LAN
QuickShare 68E Plus
- 4K HD presentation; up to 9 channels present simultaneous, 1080P HD decoding solution
- Casting via BYOM devices, multiple users can cast simultaneously; compatible with AirPlay, Miracast, WiDi, Googlecast, QuickShare Cast Huawei Cast+ license etc; no need to install any APP
- 2 HDMI output, present same or different contents on both screens simultaneously; change layout on both screen at will; Or two different screens, such as main screen and the other screen different display.
- 1 HDMI input, support audio transmission and receiving signals from third party, including high-speed photographic apparatus, camera and PC etc
- Reverse control via Android phone and Windows PC
- Built-in electronic whiteboard, write and annotate; electronic whiteboard and image casted could switch seamlessly in dual screens mode
- Multi-screens linkage; the main screen can interact with sub screens as long as multiple QS68E Plus are in the same LAN, no HDMI or any other video connecting cables; Broadcast the contents from one of sub-screens to the rest (Note*: The multi-machine linkage function requires additional Active Software Package).
- Provide API interface control, which can integrate with IOT devices such as central control and smart odium equipment or platform
- Integrate with OPS all-in-one machine, control the interactive endpoint on the OPS interface without switching HDMI signal source
- Power ON/OFF can be linked with third-party devices (such as projector, TV, IFP, touch screens, etc.)
- RS232 supported, can support some commands of central control
- Time switch, you can set the device restarting timely
- Built-in information pushing system; customized wallpaper rotating
- Customized SDK integration service; Unified Management Platform to centralize control and O&M devices in the same LAN
User Scenarios
QSL3 , QS68E/QS68E Pro are QuickShare Networks’ highlighted products. Both QSY3 &QSL3 have standard version and interactive version, they are widely used in scenarios including Wireless Screen Casting, Interactive Screen Casting( smart education), Wireless Meeting etc.
Wireless Screen Casting
QuickShare L3: Ideal choice for scenarios which just need basic wireless screen casting feature
The user can install a QuickShare L3 in a traditional meeting room based on existing equipment, so the user to cast on monitors including TV and projector via PC, smart phone or pad devices, to bring intelligent upgrade to traditional meeting rooms.
QuickShare 68E : superior option for scenarios which needs better meeting experience.
support up to 4-9 devices to cast on the screen simultaneously & two channel monitors. PC, smart phone and pad, any of them can cast on the same screen. One tap to join the casting for any new user and the screen will automatically receive the feed then adjust the screen’s layout. 9 presentations on the same screen simultaneously makes comparison clearer and more intuitive. With interactive collaboration functions such as annotation, electronic whiteboard, and reverse control, it can consolidate and extract participants’ opinions, improving meeting efficiency.
Interactive Screen Casting (Smart Education)
QuickShare 68E Interactive version: suitable for smart classroom with function requirements like wireless screen casting, multiple screens present simultaneously, real-time broadcast, arbitrary screen control, arbitrary user to cast and so on.
With interactively large touch screen for teacher and smaller screens for mini groups with 4~6 students, they form a multi-screen interactive group teaching system. With the multi-screen interactive solution, it supports dynamic annotation, split-screen preview and some other interactive functions. It also has a variety of teaching mode like seminar, group, research and hybrid etc., to make teaching scientific, easy and effective.
QuickShare 68E Pro/QuickShare 68E Plus interactive version supports 2 screens and the host can either present the same contents or present different contents on two screens simultaneously.
For example, present a local file like PPT on the screen then write and annotate on the other screen with the electronic whiteboard, easy and smooth.
Wirless Collaboration Meeting
QuickShare 68E Plus standard version has wireless meeting function, it can wirelessly connect with hardware including conference cameras/microphones and software including Teams, Zoom, Tencent meeting, DingTalk and some other video conferencing platforms; (Note*: need to work with a QuickShare wireless meeting pod). Feeds from conference camera and microphone would wirelessly transmit to the computer, so anyone can use this computer to start a meeting. No need extra installation of any new cable.
Any other member can just click Share Screen to present as long as there is already one person joins this meeting and in the same meeting room, which could reduce online members, to make it easier to operate.
Each model and each version of them have their unique features, we believe you could always find the most suitable one for yourself.
